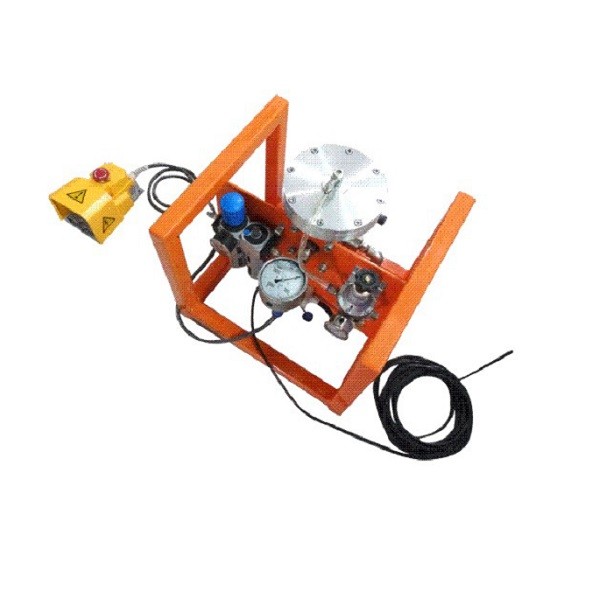

150MPa multi-gun pressure regulating and unloading unit:
Main characters:
1) Stable pressure rise and rapid unloading.
2) The internal structure is simple and unique, and the service life of valve stem and valve seat is long.
3) Stable pressure regulation is realized by adjusting the inlet air pressure.
4) It has overpressure safety overflow function.
5) Multi gun operation can be realized without mutual influence (equipped with cut-off cleaning tool).
6) The valve shall be equipped with electric control (24 V DC) pneumatic proportional valve.
Main configuration:
1) One electric control (24 V DC) pneumatic pressure regulating and unloading valve;
2) one high pressure gauge;
3) One precision air pressure regulating valve;
4) one set of explosion-proof panel and installation assembly;
5) one remote control foot switch (with 20 meter control cable);
6) A set of pneumatic triplet;
7) One set of two position and three-way solenoid valve (24 V DC).
Product No | Model No | Pressure / Flow |
FTACH1901 | FTRV1500B-UNIT | 150 Mpa,350 L/min |
